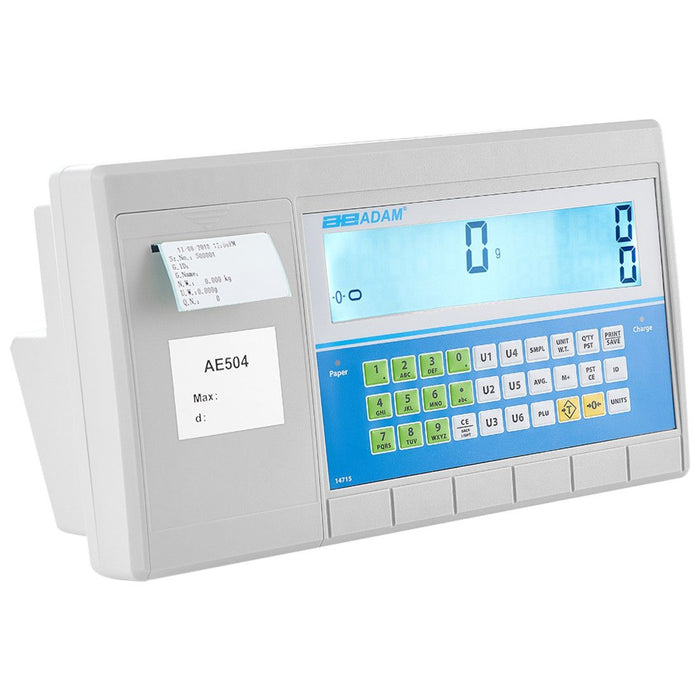

Adam Equipment AE 504 Indicator - AE 504

A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas.

In addition to numerous weighing and counting applications, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels with the indicator’s integrated printer.

The large, easy-to-read backlit LCD screen features 0.9-inch/22mm-tall digits, while a color-coded numeric keypad allows quick and easy selection from 1,000+ PLUs or to manually enter tare weights, unit weights and sample sizes. NOTE: Not for use in retail applications

Features and Benefits

• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• RS-232 interface provides speedy connection to computers and printers
• Rugged construction stands up to industrial use
• Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy
• Zero-tracking feature ensures display returns to zero reading
• Parts counting optimisation automatically refines piece weight as parts are added
• Checkweighing with audible alarm
• External calibration allows for verification and adjustment with weights
• Quick and easy configuration using the keypad
• User-selectable scale division
• A 3-year warranty means quality assured for years of use.

• Capacity Range - Selectable
• Readablility - Selectable
• Weighing Units - g, kg, lb, oz
• Interface - RS232
• Calibration - External calibration
• Display - Backlit LCD with .09" / 22mm high digits
• Power Supply - 12VDC 3A adapter / Internal rechargeable battery
• Battery Type - Lead Acid
• Number of Batteries - 1
• Operating Temperature - 0° to 40°C / 32° to 104°F
• Construction - ABS Plastic
• Net Weight - 2.14kg
• Overall Dimensions - 11.7"x4.8"x6.6" / 297x121x168mm
